GSM Alarm box

Order the samples directly from http://www.wafer-shopping.com :

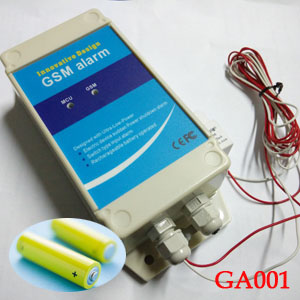

Model: GA001

GSM controller,Working with GSM cell phone network
2 Alarm detection input channel,One for AC working current detecion,one for switch type input
1 Relay channel output,each can switch maximum 125V/0.5A or 30VDC/2A power
Water-proof box for outside project
Power supply with Battery or rechargeable battery at 3.7V
Ultra low power consumption design for one battery working more than several month

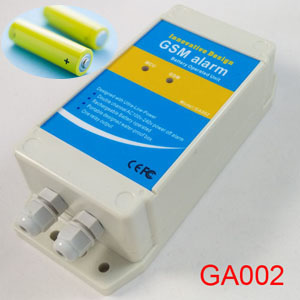

Model: GA002

GSM controller,Working with GSM cell phone network
2 Alarm detection input channel for AC power supply failure alarm
1 Relay channel output,each can switch maximum 125V/0.5A or 30VDC/2A power
Water-proof box for outside project
Power supply with Battery or rechargeable battery at 3.7V
Ultra low power consumption design for one battery working more than several month

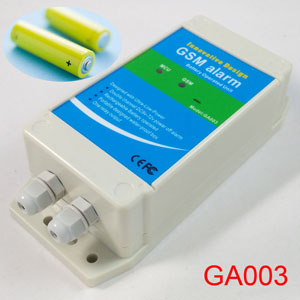

Model: GA003

GSM controller,Working with GSM cell phone network
2 Alarm detection input channel for DC power supply failure alarm
Also both input can be used to detect the switch type alarm input
1 Relay channel output,each can switch maximum 125V/0.5A or 30VDC/2A power
Water-proof box for outside project
Power supply with Battery or rechargeable battery at 3.7V
Ultra low power consumption design for one battery working more than several month

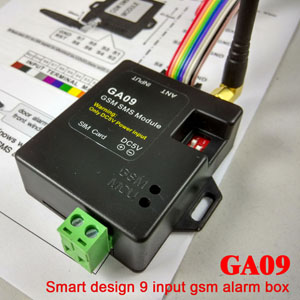

Model: GA09

Eight channel GSM SMS Alarm box
DC5-15v Power input
SMS alarm message would be sent to maximum 6 preset mobile phones when any alarm input triggered (3+3 numbers)
Any input (From S1 to S8) is shorted to GND,then will trigger the alarm
Alarm SMS can be customized with your Text
Very smart and slim designed gsm box , size only 66mm*62mm and only 22mm height. can be easily mounted to other target system board to add the gsm alarm features.
We can customized design the GSM Alarm box according to your requirments with free of charge
​Can be used widely to connect different sensors to it. for example door magnetic switch,infrared sensor,water level sensor,temperature measurement device

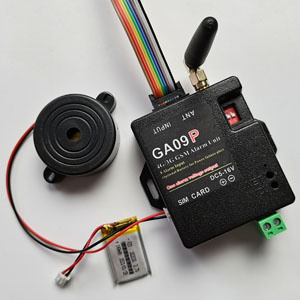

Model: GA09P

Eight channel GSM SMS Alarm box
DC5-15v Power input
SMS alarm message would be sent to maximum 6 preset mobile phones when any alarm input triggered (3+3)
Any input (From S1 to S8) is shorted to GND,then will trigger the alarm
Alarm SMS can be customized with your Text
Very smart and slim designed gsm box , size only 66mm*62mm and only 22mm height. can be easily mounted to other target system board to add the gsm alarm features.
We can customized design the GSM Alarm box according to your requirments with free of charge

Rechargeable battery on the board for power failure alert

One Alarm voltage outupt, that can be used to connect the siren

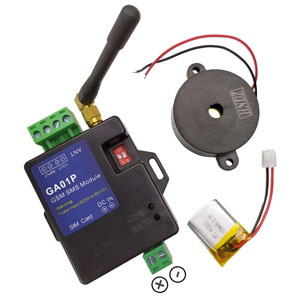

Model: GA01P

Single channel GSM SMS Alarm box
DC5-15V Power input
Maximum 6 preset mobile phones for alarm (3 for SMS+3 for Dial)
When input is shorted to GND,then will trigger the alarm
Alarm SMS can be customized with your Text
Very smart and slim designed gsm box
Rechargeable battery on the board for power failure alert
One alarm voltage output during alarm
​Can be used widely to connect different sensors to it

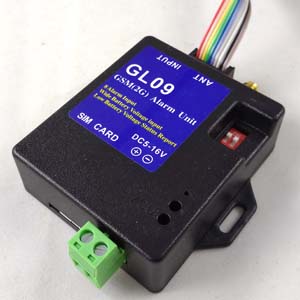

Model: GL09

Eight channel GSM SMS Alarm box
Wide power input voltage from DC5V to DC16V
SMS alarm message would be sent to maximum 6 preset mobile phones when any alarm input triggered
Any input (From S1 to S8) is shorted to GND,then will trigger the alarm
Alarm SMS can be customized with your Text
Very smart and slim designed gsm box ,Can be easily mounted to other target system board to add the gsm alarm features.
Can measure the power input voltage and when lower than the setting limit,device will send the alarm SMS
​Ppower-save mode for battery working and only need several mA current to keep the device working

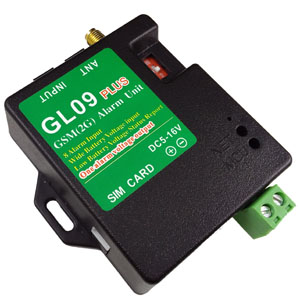

Model: GL09Plus

All compatible with GL09

One Alarm voltage outupt, that can be used to connect the siren

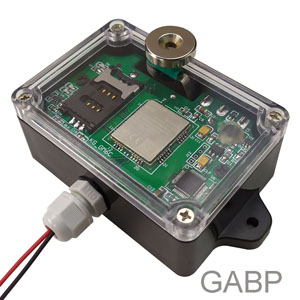

Model: GABP (Suitable for outdoor installation)

2pcs CR123A Battery operated
Water proof box for ourdoor projects
SMS alarm message would be sent to maximum 6 preset mobile phones when alarm triggered
Alarm SMS can be customized with your Text

Very simple installation

Model: GL09TOP (Suitable for battery power input)

Eight channel GSM SMS Alarm box
Wide power input voltage from DC12V
SMS alarm message would be sent to maximum 6 preset mobile phones when any alarm input triggered
Any input (From S1 to S8) is shorted to GND,then will trigger the alarm
Alarm SMS can be customized with your Text
Water proof box for outdoor projects
Can measure the power input voltage and when lower than the setting limit,device will send the alarm SMS
​Support power-save mode for battery working and only need 4 to 5uA current to keep the device working

Two battery for 2 years working at standby mode
