GSM Alarm box (Well designed GSM alarm box)

Eight channel GSM SMS Alarm box
DC5-15v Power input
Maximum 6 phone numbers can be prest to receive the alarm (3 for SMS alarm and 3 for Dial alarm)
Any input (From S1 to S8) is shorted to GND,then will trigger the alarm
Alarm SMS can be customized with your Text
Very smart and slim designed gsm box , size only 66mm*62mm and only 22mm height. can be easily mounted to other target system board to add the gsm alarm features.
We can customized design the GSM Alarm box according to your requirments with free of charge
​Can be used widely to connect different sensors to it. for example door magnetic switch,infrared sensor,water level sensor,temperature measurement device

GA09 Size: 61.5*50*20mm

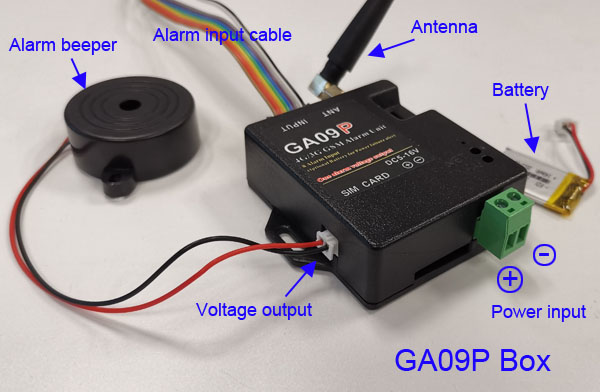

GA09P Size: 73.5*68*22.5mm

Rechargeable battery on the board for power failure alert (Only for GA09P)

One Alarm voltage outupt, that can be used to connect the siren (Only for GA09P)

Packing list:
One pcs GA09 alarm box with antenna
One pcs input cable
One pcs manual paper

  • Works  with GSM phones  and SMS command
  • Operating temperature (-10 .. +60 °C)
  • Security hardware program protection line to keep the system at safety operating mode.
  • Three alarm mode optional (Phone calling alarm, SMS alarm or both )
  • Working voltage is at DC5-15V.

Our standard products is designed with QUAD GSM BAND and that is no problem for all the world market at 850/900/1800/1900MHz

The follwoing is the 3G version GA09-B picture:
