WF-500LCD Series coin operated timer control board ( MDB-RS232 )
Order the samples directly from Online store directly
 |
WF-501LCD Timer Control Board for Power Supply with Timer Display
1. DC12V Power input
2. Controls electrical devices ( TV, Massage chair..) power supply
3. 5000Watt electrical relay capacity
4. Options: Single-coin/Multi-coin validator
5. Digital timer: rate adjustable by owner through three simple setup button;

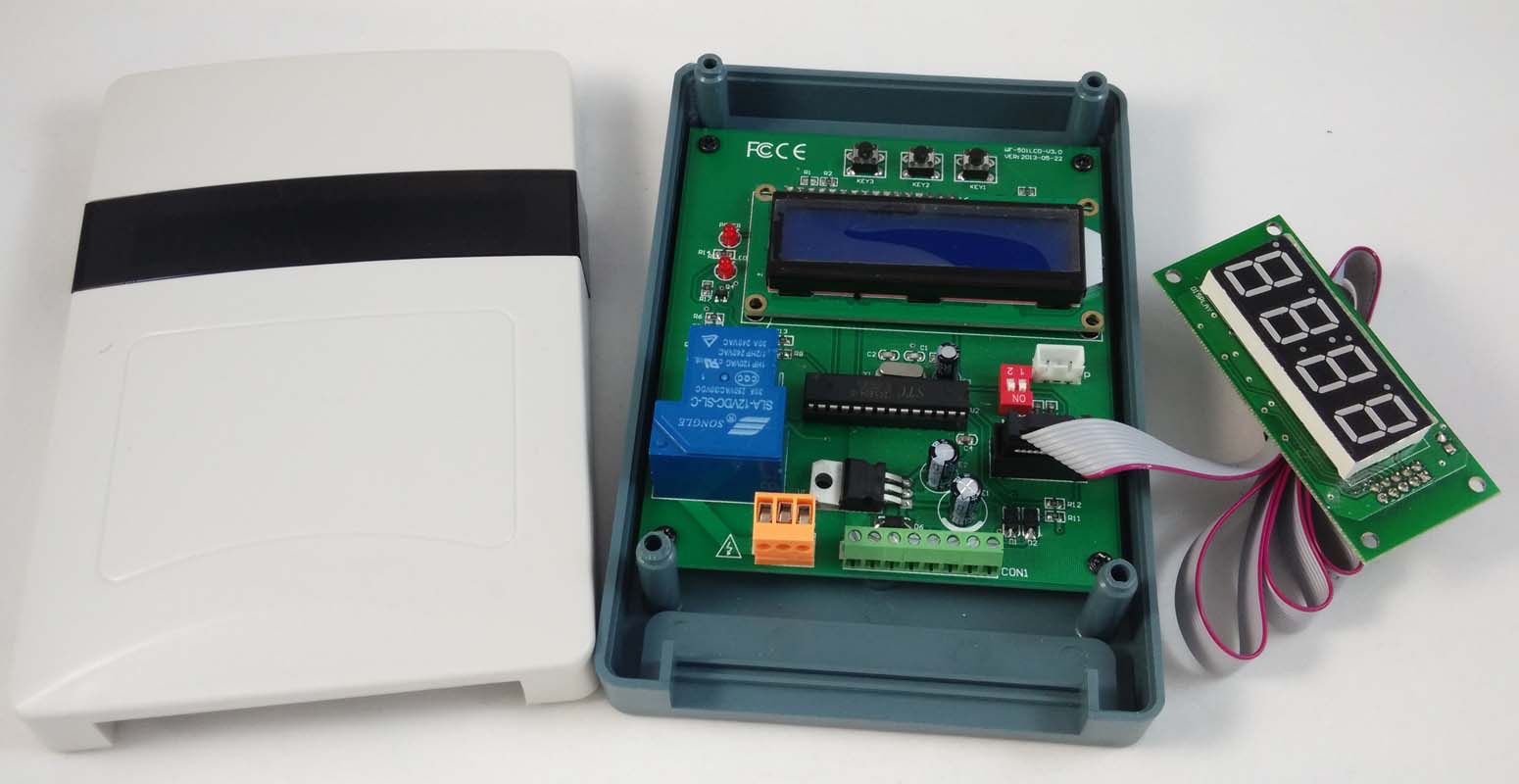

6. Inside board LCD Display board,that can setup the system parameters and check the income history |
 |
WF-502LCD Timer Control Board for Power Supply with Timer Display
1. AC110V-240V power input
2. Controls electrical devices ( TV, Massage chair..) power supply
3. Two Relay output for different equipment
4. Options: Single-coin/Multi-coin validator
5. Digital timer: rate adjustable by owner through three simple setup button;
6. Inside board LCD Display board,that can setup the system parameters and check the income history

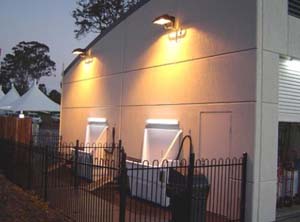

Mostly suitable for Coin Operated Self Serve Dog Wash, pet wash machine |
WF-501LCD coin operated timer control board is suitable for the following projects:
Coin operated massage chair,
Coin operated TV, game machine
Manual for WF-501LCD Download
Features:
Timer credit value per coin pulse (Minimum is one second, each setup will add one second )
Minimum working pulse
Auto start or manual start
Save credit or not when power off
LED or LCD display board ( LED display board is standard )
1. Auditing total money counter.
Owner can press the button to get total money count, which could not be reset. preventing money stealing by employee.
2. Can setup the minimum start money charges.
Fox example : Coin op Coin Operated Power controller:
Connect any electrical device's power cable into this Coin op Box and connect this Coin op Box's power cable to source power socket, then you turn your electrical device into Coin operated. You can collect money from customer by timer. Default maximum is 120VAC 20A, 240VAC 5A, 24VDC 20A
( can be customized for your requirement )
How it works:
1. The System disconnect the Power Cable when there is no money dropped.
2. When user drop money, the system will connect the Power Cable for a period of time, 10 minutes for example.
Then there is a timer will began to count down (this is working at auto start button)
(When at manual start mode,that would need to use the manual button to start the timer)
3. When the timer count down to 0 the system will disconnect Power Cable and user then could not play.
4. When the user drop more money, he can continue to use
Fox example : Water vending/dispensing control board with coin acceptor and electric water valve:
Connect the electric water valve, then you turn your electrical device into Coin operated water vending machine. You can collect money from customer by timer.
( can be customized for your requirement )
How it works:
1. Customer read the instruction and drop the money
2. The paid time shows on the timer, the water will not start to flow out until the start button is pressed. the customer can continue drop money.
3. If the customer did not drop more money or press the start button within 60 seconds,the paid timer will be cleared.
4. Customer press the start button 1 time, the timer start to countdown and the control board will start the electric water valve to dispense water.
5. If customer press the start button again, the timer will pause, the control board will stop the electric water valve to dispense water.
6. When the timer stop, the paid time will be cleared if customer did not press the start button again within 60 seconds(can be changed)
The start button can be toggled to control the timer on/off and the water also on/off at the same time.
Whenever the time count down to 0 or be cleared, the control board will stop the electric water valve to dispense water.
WF-502LCD coin operated timer control board is suitable for the following projects:
Coin operated Dog wash (self-serve dog wash) - can control the wash system and the dryer system at the same time.
(Coin operated dog wash system and companies)

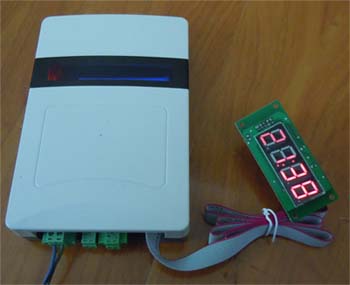

Display board - LED timer display board and Optional LCD timer display board
(Manual of WF-502LCD Coin operated timer control box)
|
