Microwave Automatic Sliding Door Sensor WB-4001B

(Automatic door motion sensor)

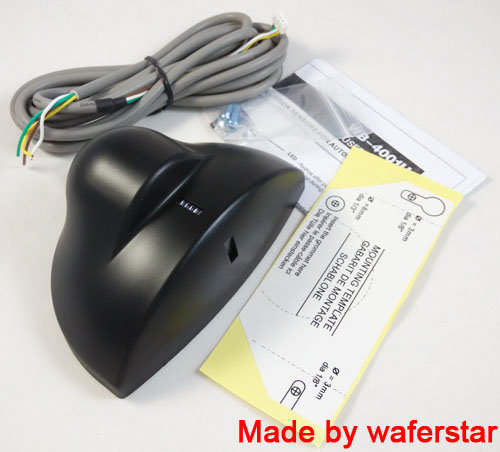

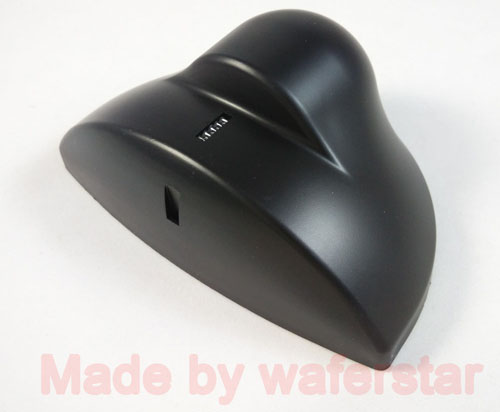

Black color

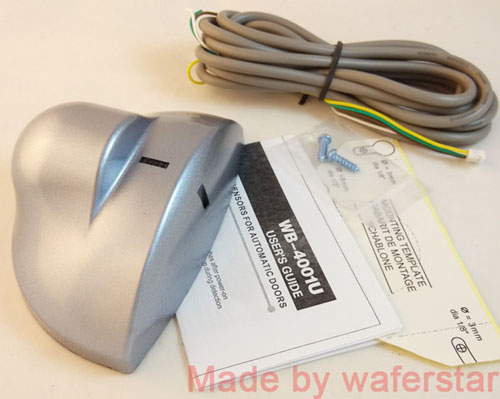

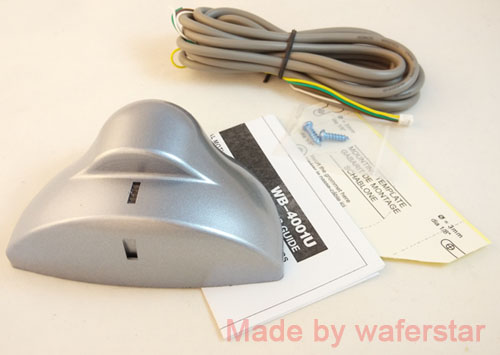

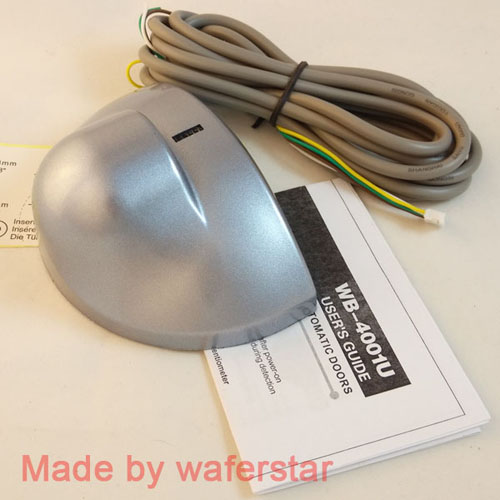

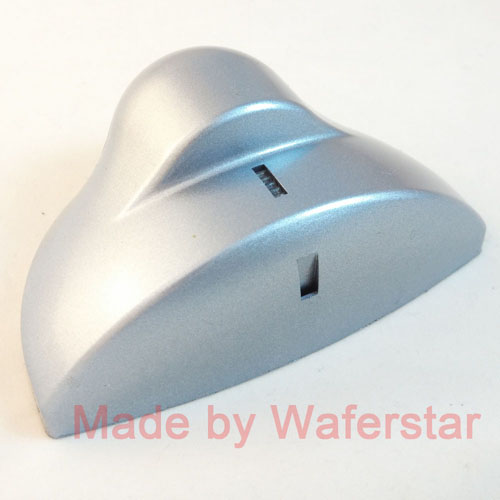

Silver color

Wafer, more than 6 years experiences on the sensor manufacturing ;

Wafer SMT machine for sensor mounting quality ;

Good components selection to ensure the sensor performance ;

GERMANY Microwave module inside to provice the senosr best stability ;

Wafer Skilled workers for assembly and test fully ;

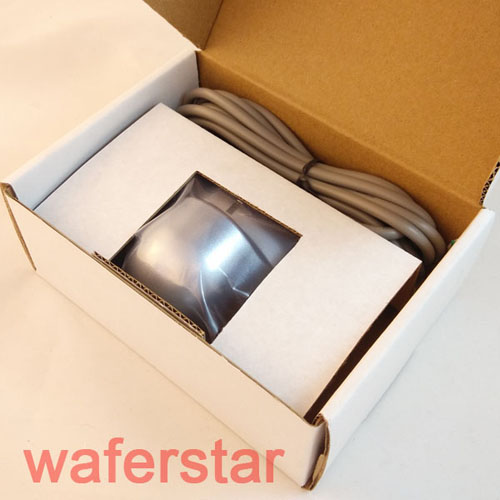

Good designed package box to improve the increased value and apperance ;



24.125GHz Microwave sliding door sensor : WB-4001

Order the samples directly from http://www.wafer-shopping.com :

WB-4001U Black

WB-4001U Silver

WB-4001U Spare Parts

WB-4001B Black

WB-4001B Silver

WB-4001B Spare parts

specifications

MODEL

WB-4001U / WB-4001B

POWER SUPPLY AC/DC 12V ~ AC/DC 24V

MAINS FREQUENCY

50Hz ~ 60Hz

FREQUENCY

24.125GHz

TILT ANGLES

0° to 90° vertical and -30° to + 30° lateral

SENSING TIME / HOLD TIME

REAL-TIME / 0.5 SEC

RANGE

4.0M(W) X 3.0M(D)

POWER CONSUMTION : STANDBY 000000000000000000:OPERATION

200mW@12V
550mW@12V

DETECTION ANGLE

40' ~ 160'

OPERATING TEMP.

-25'C ~ +60'C

RELATIVE HUMIDITY

0 ~ 95 %

MOUNTING STYLE

WALL

MOUNTING HEIGHT

3.0M (MAX) (other specification need to order in advance)

WEIGHT

210g

SIZE 120mm ( L) *80mm ( W ) *60mm ( H )

COLOR

SILVER or BLACK

CE and FCC Certificates for WB-4001 Series Automatic door sensor

Good Quality to be installed more than 300 pcs on Shanghai pudong international airport project !

Four years , free maintance.

Pictures of Wafer Sensors from Shanghai Pudong International airport
