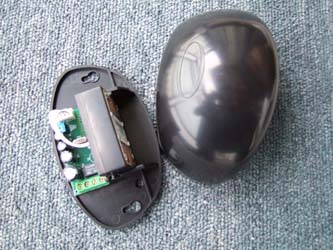

Microwave Automatic Sliding Door Sensor WB-3002

Microwave sliding door sensor : WB-3001/WB-3002/WB-3003/WB-3004

WB-3001
WB-3002
WB-3003
WB-3004

specifications

MODEL

WB-3001

WB-3002 WB-3003 WB-3004
POWER SUPPLY AC/DC 12V ~ AC/DC 24V

MAINS FREQUENCY

50Hz ~ 60Hz

FREQUENCY

10.525GHz(9.00GHz~12.00GHz)

FUNCTION INDICATION

LED

SENSING TIME / HOLD TIME

REAL-TIME / 0.5 SEC

RANGE

4.0M(W) X 3.0M(D)

POWER CONSUMTION : STANDBY 000000000000000000:OPERATION

200mW@12V
550mW@12V

DETECTION ANGLE

40' ~ 160'

OPERATING TEMP.

-25'C ~ +60'C

RELATIVE HUMIDITY

0 ~ 95 %

MOUNTING STYLE

WALL

MOUNTING HEIGHT

3.0M(MAX)

DIMENTION(W*H*D)

116 * 75 * 55mm

WEIGHT

120g

COLOR

SILVER or BLACK

SILVER or BLACK SILVER or BLACK SILVER or BLACK

Product Features

* It attaches the Microwave Sensor which uses a RF.

* The up-to-date sense which uses Doppler Principle.

* Narrow and wide beam pattern selection funtion.

* Low Cost & Low Power Consumption.

* Suitable for external/Internal automated door.

* The detection angle can be adjusted.

* ABS enclosure with clear view of indicator Led.

Technology & Certification

As the RF microwave sensor module which uses the Doppler principal
which it develops at the domestic beginning patent it made an
application.

Additional Information

(Reference)
1)Microwave Motion Activator (Automatic Door Sensor) is applied to Doppler Radar principle.

2)Able to use in any environment, there is not illegal operation, better ability than existing detector.

3)Small and available size to be able internal/external setting.

4)As high technology standard for WHO innocent to human body.

5)Adjustable detecting distance from 0.0m to 3.0m.

6)Perfect detecting range by detecting angle of 40 degree ~ 160degree is able to detect the person going in and out.

7)Able to stick on the wall.

8)Adjustable detecting Range.

9)The Microwave Motion Activator is developed at the domestic(Korea) beginning product.

We also provide OEM service for our customer with specified outline or specified color and also provide the free service of LOGO print on the Cover of the sensor.
