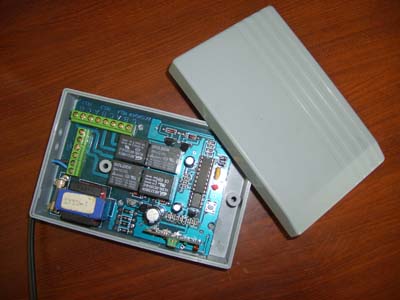

4 CH RF , Wireless Remote Control Switch (Model:WS-312) ---- Hopping Code / Learning Code Type

Remote Control Switch (Radio-Frequency Transmitter Receiver Unit @433M or @315M)

WS-312 wireless receiving controllers modules are widely used in remote control of garage door, roller curtain,door locks,remote sensing,telemetry,industrial control,motor control and wireless security alarm industries,and it can be ordered at 1,2,3,or 4 output channels.

The receiver has several modes of operation. These modes determine how the output relay functions once a properly coded signal is received. A 2-Jumper switch located next to the Micro Controller allows the user to select the mode of operation for the output relay and push button is used to program and learn the transmitters.

Mode:Momentary, Toggle, Latch, Momentary+Toggle

Modes Function:
Toggle: Press-> On, Press again ->Off
Momentary: Press->On, Release->Off
Latched: Press->On, Release -> On

TOGGLE MODE.

Press key 1: connects channel 1.Press key 1 again: disconnects channel 1.
Press key 2: connects channel 2. Press key 2 again: disconnects channel 2.
Press key 3: connects channel 3. Press key 3 again: disconnects channel 3.
Press key 4: connects channel 4. Press key 4 again: disconnects channel 4.

MOMENTARY MODE.

Press key 1 and hold: connects channel 1. Release key 1: disconnects channel 1.
Press key 2 and hold: connects channel 2. Release key 2: disconnects channel 2.
Press key 3 and hold: connects channel 3. Release key 3: disconnects channel 3.
Press key 4 and hold: connects channel 4. Release key 4: disconnects channel 4.

LATCH MODE.

Press key 1: connects channel 1 and disconnects channels 2, 3 and 4.
Press key 2: connects channel 2 and disconnects channels 1, 3 and 4.
Press key 3: connects channel 3 and disconnects channels 1, 2 and 4.
Press key 4: connects channel 4 and disconnects channels 1, 2 and 3.

TOGGLE AND MOMENTARY MODE.

Press key 1 and hold: connects channel 1.Release key 1: disconnects channel 1.
Press key 2 and hold: connects channel 2.Release key 2: disconnects channel 2.
Press key 3: connects channel 3. Press key 3 again: disconnects channel 3.
Press key 4: connects channel 4. Press key 4 again: disconnects channel 4.

Note:

• WS-312-T is a hand-held type remote transmitter;
• WS-312 is a Self-Learn Type remote control receiver;
• Before installation,Be sure it works from the position the transmitter is to be installed before drilling holes,even when the distance between transmitter and receiver is within 10 metres.If it doesn't work,change receivers position or transmitter and check again.
