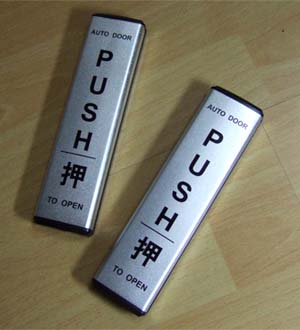

Wireless Switching for automatic doors (Model:WS-310-T3)

Slim design to match all doors!

This is high performance wireless switching device using FM modulation.

Description Specification
Frequency 433MHz/315MHz (Optional)
Input Voltage (Receiver) 6V battery (2 x 3V button Cell)
Battery life 3 year -----( 300 times(1s) per day
Code Type Rolling Code /Fixed code
Operating Temperature -10 ℃ to 60 ℃

Dimensions (L x W x H)

187mm x 49mm x 16mm

Upon a slight push on the touch plate mounted on the automatic door ,a transmitter in the plate sends a radio signal to the receiver inside the door channel and operates the door switch.

Operation of small size antena with receiver makes installation easy;
No electromagnetic interference;
Installation is easy as no wiring needed;
Water-Proof function enhanced,possilbe to install by double-size adhesive tape;
No interference from snow ,rain;
Hopping code and fixed code type is optional..
