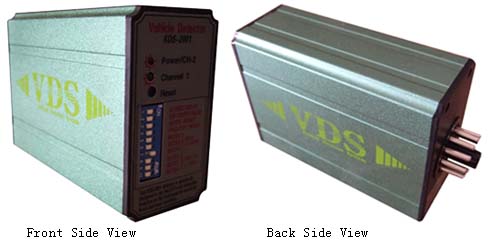

Gate Operator Vehicle Loop Detectors KDS-2001

Gate Operator Vehicle Loop Detector KDS-2001

Loop Detector Systems are used for indicating the presence or passage of vehicles. A system consists of an inductive loop and a detector module from Wafer. Applications include traffic signal control, access control in car parks gate operator and vehicle counting.

1 . Introduction:


Gate operator vehicle loop detectors provide customers with a safety detector that can prevent accidents which occur when power outages cause vehicle access control systems to reset their logic boards. They incorporate an advanced micro-controller that combines a powerful digital computer and the latest and most advanced inductive vehicle loop technology to give high-test reliability and accuracy when measuring, counting or detecting vehicles when passing through any residential or commercial gate operator.
This ability helps avoid unexpected gate operations such as the raising or lowering of gate arms, sliding gate operation, motorized teeth and barricade actuation. It is highly suggested that a wider application of vehicle loop detectors be added to gate operators, whether it be industrial, commercial or residential, to suppress the operation of heavy gates and vehicle barricades to prevent accidental closings or raisings when authorized vehicles move through vehicle access control systems.
Typical digital loop detectors hold a gate open until the last part of a vehicle has passed the closing loop, located beyond the gate. The detector then gives a pulse on departure, instructing the gate to close after the vehicle has passed.

2. Specification:

Supply power AC 110V/220V, ±10%, 50/60HZ , DC 12V
Consuming power Normal 1.0W, Operation 3.6W
Operating temperature -20 -±50C, Humidity 30%-85%
Size 105mm(H) × 75mm(W) ×41mm(D)
Quality of material Aluminum
Weight 342g

3. Function:
1) Detection Method : Pass detection mode( Frequency change mode)
2) Detection Range : All of vehicle
3) Sensing Range : LOOP COIL width over vehicle space distance
4) Detection Speed : 0Km-180Km/h
5) Sensitivity: High sensitivity - Low sensitivity ( 8 Level)
6) Alignment : Automatic alignment system
7) Timer Function : 0-14 Second control the time by option
8) Reset Function : Reset bottom when error occur (Automatic:30 SEC, Manual:Option)
9) Output Singnal : NO power relay ( short or long point of contact)
