Microwave Contactless Switch WS-410-2

The WS-410-2 Series touchless switches are Microwave devices designed to activate full and low energy automatic doors.

Their hands free operation makes them ideal for ADA applications. Other applications include clean-room access points, request-to-exit devices (3 amp contact) and point-of-purchase displays. The WS-410-2 is microprocessor controlled allowing for superior operation in a smaller unit.

TECHNICAL SPECIFICATIONS:

Technology

Microwave (MCU inside)

Detection Range 7 cm ~ 50 cm
Radiated Frequency 10.525GHZ
Operating Mode Sensor:Stand by after hold time
Switch:Toggle output
Supply Voltage 12~24V AC/DC
Relay Output Ratings 24VDC/120VAC
Max.Relay Output 0.5Ampere
Holding Time(Adjustable) 0.5~10s (Sense Mode)
Dimensions 86 mm x 86 mm x 28 mm

Main Features:
Microwave motion sensor used as contactless switch;

Avoids any contact with hands or elbows for absolute hygiene;

Adjustable sensing field, between 7 and 50 cm;

Can be completely recessed into any surface;

Can be used in "SENSOR"mode or in "SWITCH" mode;

Insensitive to color, temperature or reflection from the target;

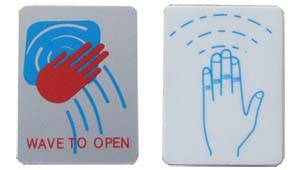

Decals Option:

Dimension:

Accessories and application:

Mounting Box


Application
