Infrared Contactless Switch WS-410-1

The WS-410-1 Series touchless switches are active infrared devices designed to activate full and low energy automatic doors.

Their hands free operation makes them ideal for ADA applications. Other applications include clean-room access points, request-to-exit devices (3 amp contact) and point-of-purchase displays. The WS-410 is microprocessor controlled allowing for superior operation in a smaller unit.

TECHNICAL SPECIFICATIONS:

Technology Active infrared (MCU inside)
Detection Range 5 cm ~ 50 cm
Detection Mode Presence
Operating Mode Sensor:Active when there is a presence
Switch:Relay toggle when there is presence
Supply Voltage 12~24V AC/DC
Relay Output Ratings 24VDC/120VAC
Max.Relay Output 0.5Ampere
Holding Time(Adjustable) 0~7s (Sense Mode)
Dimensions 87 mm x 87 mm x 36 mm

Main Features
Active infrared motion sensor used as contactless switch;

Avoids any contact with hands or elbows for absolute hygiene;

Adjustable sensing field, between 5 and 50 cm;

Can be completely recessed into any surface;

Can be used in "SENSOR"mode or in "SWITCH" mode;

Insensitive to color, temperature or reflection from the target;

Mounting Box
Setting the sensing field

Application

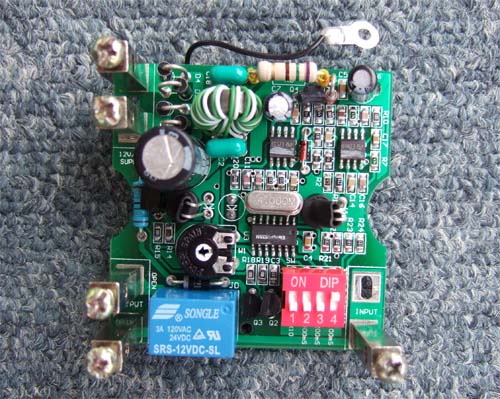

DIP SWITCH ON OFF
DIP- 1: Out put type Latched Relay (SWITCH MODE) Momentary Pulse(SENSE MODE)
DIP- 2~4: Delay time adjust Delay time from 0 to 7 s
DIP-2 DIP-3 DIP-4 TIME (s)
OFF OFF OFF 0
OFF OFF ON 1
OFF ON OFF 2
OFF ON ON 3
ON OFF OFF 4
ON OFF ON 5
ON ON OFF 6
ON ON ON 7

Variable Resistance : Clockwise adjust will increase the sensing field. Anti-clockwise will decrease the sensing field.
