Automatic Door Microcell Safety Beams WS-210

Safety Beams(Microcell beams)(Model:WS-210)

WS-210 is a miniature photo electric safety thru-beam sensor designed for automatic door control and is also similarly suited for other applications such as garage doors ,gate operators, etc. as a safety or primary control device where a narrow field of detection is required.

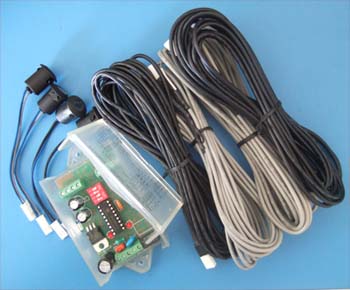

Each set consists of a controller,equipped with one or two pairs of emitter/detector sensor.

Completely compatible and mutual replacable with BEA Microcell Sensor



Main Features

1.Miniature sensor head & compact controller and Installation flexibility for unlimited applications.

2.Single or double Microcells available

3.Sensor head can be separated from shielded wire at the plugs for easy installation.

4.Available with short or long cables

5.Microprocessed active infrared

6.Low power consumption.

7.12V-24V AC/DC Univeral power input.

Order the samples directly from http://www.wafer-shopping.com :

CE and FCC Certificates for WS-210 Series Automatic door safety beam sensors

Technical Specifications

Input Voltage 12~24V AC/DC
Technology Active through infrared beam,Microprocessor
Relay Contacts NC/NO
Function Indicator Led (Beam break & Status)
Max Detecting Distance 5m / 10m
Hold time 300 ms


Microcell One:Barrier composed of cylindrical heads which can be pulled out ,with a 5 m cable and a control box fitted with a relay;

Microcell Two:Barrier composed of cylindrical heads which can be pulled out ,with a 5 m cable and a control box fitted with a relay;

Microcell Three:Barrier composed of cylindrical heads which can be pulled out ,with a 5 m cable and a control box which can be monitored,with no relay,with an outut transistor;

Microcell Short:Specially designed for Foot Sensor Switch with a high sensitivity in short distance. Barrier composed of cylindrical heads which can be pulled out ,with a 5 m cable and a control box fitted with a relay;

WS-210 MCU

WS-210 Controller Box

WS-210 Sensor Wire

Optional Spare Parts:


Led Counter (Please visit to get detail application: counter page
