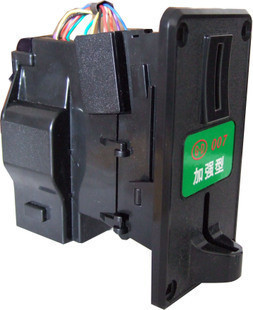

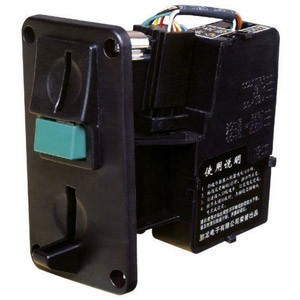

WF Single Type Electronic Coin Acceptor (Teaching Type)

A CPU Single Coin acceptor with three special functions: Automatic alarm, coin drop steady and prevent coin embezzle.It is designed in anti-string style with high detecting ability.

With the Teaching button,then you can setup your coin paramaters easily.

Specifications/Features:

• Rating voltage: DC+12V with 20% discrepancy
• Size per unit: W143 x D64 x H124(mm)
• Net weight: 0.38kgs
• Temperate: -20'C ~ +75'C
• Accepted coin diameter: 18mm-32mm
• Accepted coin thickness: 1.2mm-3.0mm
• Selected Normal ,Slack,Loose For Sensitivity of Coin Acceptance
• Lines guide of 5 lines with 4 pins connector
• Setting Button ,easy to setup the coin parameters
