SK Comparable Type Electronic Coin acceptor

A CPU Single Coin acceptor with three special functions: Automatic alarm, coin drop steady and prevent coin embezzle. It is designed in anti-string style with high detecting ability.

  • To change the coin you wish to accept, simply lift up the retaining bracket and insert new sample coin and the mech. will accept only that coin
  • Accepts coins based on the coins diameter size, thickness, and material content
  • Dual sensors to virtually eliminate the problem of stringing
  • Output line to allow simple connection of counting meter to coin mech
  • Capable of accepting a wide variety of coins and tokens
  • 3-way adjustable timing switch for coin output 22ms / 45ms / 65ms
  • Adjustable sensitivity to eliminate acceptance of high quality slugs

Specifications/Features:

  • Rating voltage: DC+12V with 20% discrepancy
  • Size per unit: W143 x D64 x H124(mm)
  • Net weight: 0.38kgs
  • Temperate: -20'C ~ +75'C
  • Accepted coin diameter: 18mm-32mm
  • Accepted coin thickness: 1.2mm-3.0mm
  • Selected Normal Open or Normal Close
  • VR tuning for sensitivity of coin acceptance
  • Turn clockwise (+) for strict coin selecting
  • Turn anti-clockwise(-) for slack coin selecting
  • Lines guide of 3lines with 4pins connector

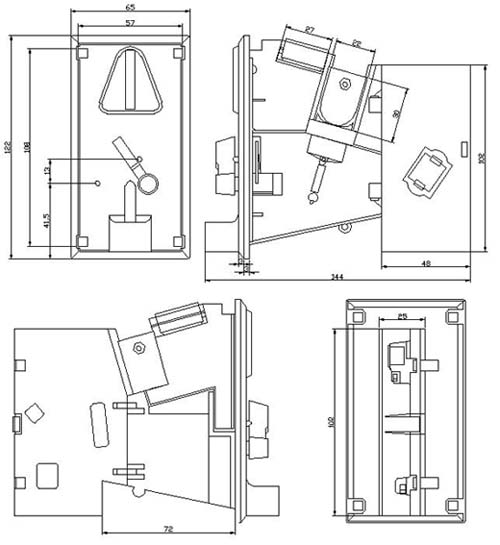

Dimension:
