GSM Key to Automatic door opener (Model: GSM-KEY-AC2000 3G Version)

Power input AC100-240V (AC/DC12-24V is also optional for order)
Double relay output and double alarm input
Device parameters programming with wireless GPRS or wired programmer

GSM-KEY-GPRS (AC100-240v Water Proof Mounting Box Version)

AC/DC12-24V version is alo available

Order the samples directly from http://www.wafer-shopping.com :

Package including:

One pcs GSM-KEY-AC2000-3G 3G Version GSM gate opener controller
One pcs GSM Magnet mount antenna (3 meter wire length)
One pcs USB program adaper

Manual for 3G Version GSM-KEY-AC2000

GSM-KEY-AC2000 / GSM-KEY-DC2000 / GSM-KEY-ADC2000 controller Formal software V2.1 for windows system

USB Programmer Driver ( CP2102 adapter )

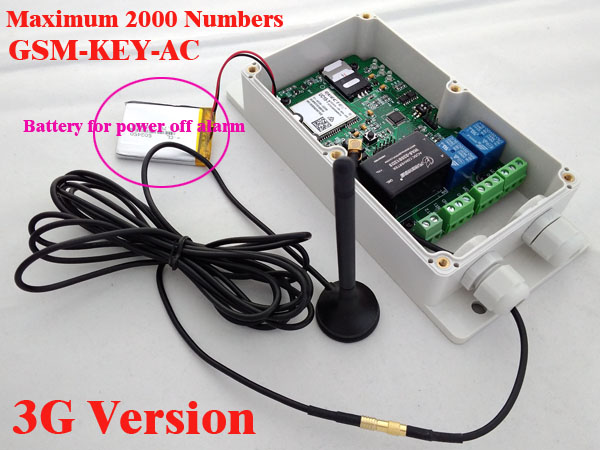

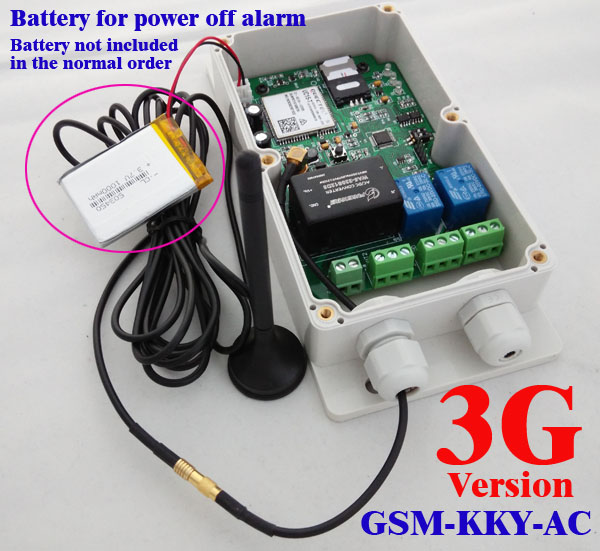

For the rechargeable battery, normally,that is not included in the order package,and that would need to be order seperately.

GSM-KEY-AC-3G model list:

Our 3G controller is designed for USA, Australia, Singapore and Europe, Especially for some countries,that GSM(2G) Net is already stopped.

GSM-KEY-AC2000-3G0 Version (AC100-240V Power input)

What is GSM-KEY?

The GSM-KEY System is an advanced secured system that is based on the cellular network , The GSM-KEY system works with Caller ID and when an authorize number calls, the system will recognize the caller and open the gate, While it will not answer the call as the call will not cost anything.

(Inside pictures,and the transparent cover is also optional)


How does it work?

GSM-KEY incorporates a professional industrial grade GSM engine that receives calls at its SIM number, as any ordinary GSM phone. You need to use any operator that operates in the 900/1800 Mhz band, that is the standard in most of the world, Just to give an example, if your SIM has a phone number 35674564, that is the number you have to call to open the gate.GSM-KEY has a memory where you will store the numbers of people enabled to open your gate (up to 200) When GSM-KEY receives a call, it will check the calling number and if the number is in the list you have prepared it will reject the call and open the gate.

Does it work with any electric gate?

Yes. All electric gates have a button that is used to open them. GSM-KEY has a relay whose contact has to be connected to the oopening button. Actually it pushes the button in your place.

Does it cost me anything to use my phone to open my gate?

GSM-KEY doesn't answer the call, it simply checks the caller ID. Your network must send the caller ID otherwise GSM-KEY won't work. Usually operators don't charge until you answer the call, so it won't cost you anything to open the gate with GSM-KEY.
Of course you need to have an active SIM inside it, and this may have a monthly fee regardless of the calls.
Check your local operators for these details.

What is the maximum working distance?

GSM-KEY doesn't have limitations like a normal remote control. Using a mobile phone you can open from very far away, even from another city!
It is really convenient to arrive in front of your house when the gate is already open, without having to wait in the middle of the road.

How can I enable different phone numbers to open my gate?

To store a number, you simply send an SMS, that starts with a password, to GSM-KEY, indicating the phone number to enable, and its position in the list.
Numbers are stored in GSM-KEY memory and not on the SIM. This prevents somebody from removing the SIM to copy all the numbers into a mobile phone.
Only the one who knows the password can insert or delete enabled phone numbers.
For faster operation you can order from us a special Software to connect the GSM-KEY to your PC and input numbers.

How many different phones can open my gate?

GSM-KEY accepts up to 200 full numbers,In additional 40 special phone numbers available that allow entrance to the building by time and days of the week..

What else do I need besides GSM-KEY?

You need only a valid SIM card. Install GSM-KEY, insert SIM, program enabled numbers and you are ready to go.

Is it difficult to install it?

You need to connect the 2 wires that come out of the box in parallel with the Gate push button.
Connect it to AC power ( 230V 20VA), insert SIM and start programming numbers (12 numbers can be programmed with only one SMS).
Installing GSM-KEY is simple for anybody with enough technical skills.

Specially designed GSM antenna for GSM-KEY-GPRS version Water proof type GSM remote control box

Wafer GSM-KEY USB programmer
