EU2 Multi-Coin Coin acceptor

We already Specially designed the parameters for the many countries Coin Samples ,and Normally you don't need to supply the Samples,We will supply the best design for you.

We already have a good market in Europe,Philipins,Malaysia,Thailand,
Mexico,Japan,Korea, ... and so on.

Best Design / Best Quality / Best Price

For Water Vending Machine and so on

EU2 Coin acceptor Specifications/Features:

1. EU2 can accept up to 6 different coins at the same time.
2. With an 8 bit DIP Switch, can change the pulse on site.
3. The “learning mode” allows you to teach coins on site.
4. Output modes:
------A. Pulse/Totalizer output:
------B. Output as a timer:
------C. Parallel output:
------D. RS232 protocol output mode.

5. There is an “inhibit line” for the host machine.
6. For Euros, 100% accept coins: 5-cent, 10-cent, 20-cent, 50-cent, 1-Euro and 2-Euro.
7. Specification :
-----1) Applied voltage: DC +12V .
-----2) Working temperature: -5℃ ~ +50℃
-----3) Coin diameter: 17mm~31mm.
-----4) Coin thickness: 1.0mm~3.0mm.

Plastic front panel

EU2 Coin acceptor Connector:

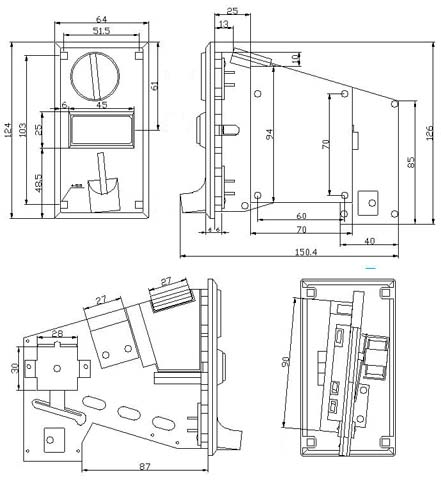

EU2 Coin acceptor Dimension :

Also please check out another pages of EU Series coin acceptor: EU1 Multi-Coin Coin acceptor
