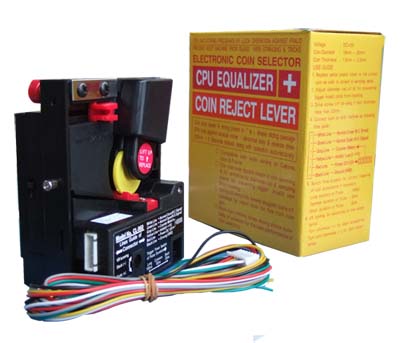

CL Comparable Type Electronic Coin acceptor - Top Entry Type

A CPU Single Coin acceptor with three special functions: Automatic alarm, coin drop steady and prevent coin embezzle. It is designed in anti-string style with high detecting ability.

• To change the coin you wish to accept, simply lift up the retaining bracket and insert new sample coin and the mech. will accept only that coin
• Accepts coins based on the coins diameter size, thickness, and material content
• Dual sensors to virtually eliminate the problem of stringing
• Output line to allow simple connection of counting meter to coin mech
• Capable of accepting a wide variety of coins and tokens
• 3-way adjustable timing switch for coin output 22ms / 45ms / 65ms
• Adjustable sensitivity to eliminate acceptance of high quality slugs

Specifications/Features:

• Rating voltage: DC+12V with 20% discrepancy
• Size per unit: W63 x D151 x H124(mm)
• Net weight: 0.48kgs
• Temperate: -20'C ~ +75'C
• Accepted coin diameter: 18mm-31mm
• Accepted coin thickness: 1.2mm-3.0mm
• Selected Normal Open or Normal Close
• VR tuning for sensitivity of coin acceptance
• Turn clockwise (+) for strict coin selecting
• Turn anti-clockwise(-) for slack coin selecting
• Lines guide of 5lines with 4pins connector
