GSM-KEY 遥控开门控制器 (Model: GSM-KEY-DC)

MODEL Phone numbers Special phone numbers Alarm phone numbers Log list Power supply
GSM-KEY-AC2000 2000 800 5 500 AC220V/110V
GSM-KEY-AC200 200 100 2 200 AC220V/110V
GSM-KEY-DC2000 2000 800 5 500 AC/DC9-12V
GSM-KEY-DC200 200 100 2 200 AC/DC9-12V

Our standard products is DUAL GSM BAND at 900/1800MHz, Before order ,please confirm your working frequency. and select the right products for your project.

What is GSM-KEY?

The GSM-KEY System is an advanced secured system that is based on the cellular network , The GSM-KEY system works with Caller ID and when an authorize number calls, the system will recognize the caller and open the gate, While it will not answer the call as the call will not cost anything.

How does it work?

GSM-KEY incorporates a professional industrial grade GSM engine that receives calls at its SIM number, as any ordinary GSM phone. You need to use any operator that operates in the 900/1800 Mhz band, that is the standard in most of the world, Just to give an example, if your SIM has a phone number 35674564, that is the number you have to call to open the gate.GSM-KEY has a memory where you will store the numbers of people enabled to open your gate (up to 200) When GSM-KEY receives a call, it will check the calling number and if the number is in the list you have prepared it will reject the call and open the gate.

GSM-KEY iphone 手机远程控制软件()易于编程和使用

GSM-KEY 安卓手机控制软件()易于编程和控制使用

GSM-KEY Software for PC program ( more parameters to program the special phone numbers)

Does it work with any electric gate?

Yes. All electric gates have a button that is used to open them. GSM-KEY has a relay whose contact has to be connected to the gate opening button. Actually it pushes the button in your place.

Does it cost me anything to use my phone to open my gate?

GSM-KEY doesn't answer the call, it simply checks the caller ID. Your network must send the caller ID otherwise GSM-KEY won't work. Usually operators don't charge until you answer the call, so it won't cost you anything to open the gate with GSM-KEY.
Of course you need to have an active SIM inside it, and this may have a monthly fee regardless of the calls.
Check your local operators for these details.

What is the maximum working distance?

GSM-KEY doesn't have limitations like a normal remote control. Using a mobile phone you can open from very far away, even from another city!
It is really convenient to arrive in front of your house when the gate is already open, without having to wait in the middle of the road.

How can I enable different phone numbers to open my gate?

To store a number, you simply send an SMS, that starts with a password, to GSM-KEY, indicating the phone number to enable, and its position in the list.
Numbers are stored in GSM-KEY memory and not on the SIM. This prevents somebody from removing the SIM to copy all the numbers into a mobile phone.
Only the one who knows the password can insert or delete enabled phone numbers.
For faster operation you can order from us a special Software to connect the GSM-KEY to your PC and input numbers.

How many different phones can open my gate?

GSM-KEY accepts up to 200 full numbers,In additional 40 special phone numbers available that allow entrance to the building by time and days of the week..

What else do I need besides GSM-KEY?

You need only a valid SIM card. Install GSM-KEY, insert SIM, program enabled numbers and you are ready to go.

Is it difficult to install it?

You need to connect the 2 wires that come out of the box in parallel with the Gate push button.
Connect it to AC or DC power ( AC/DC9-12V), insert SIM and start programming numbers (12 numbers can be programmed with only one SMS).
Installing GSM-KEY is simple for anybody with enough technical skills.

Optional Parts:

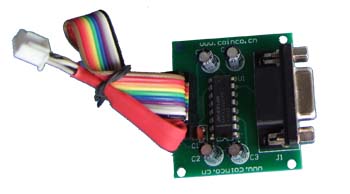

GSM-KEY Program adapter to PC Software:

Download:

==================Please contact wafer company to get the right program software.
